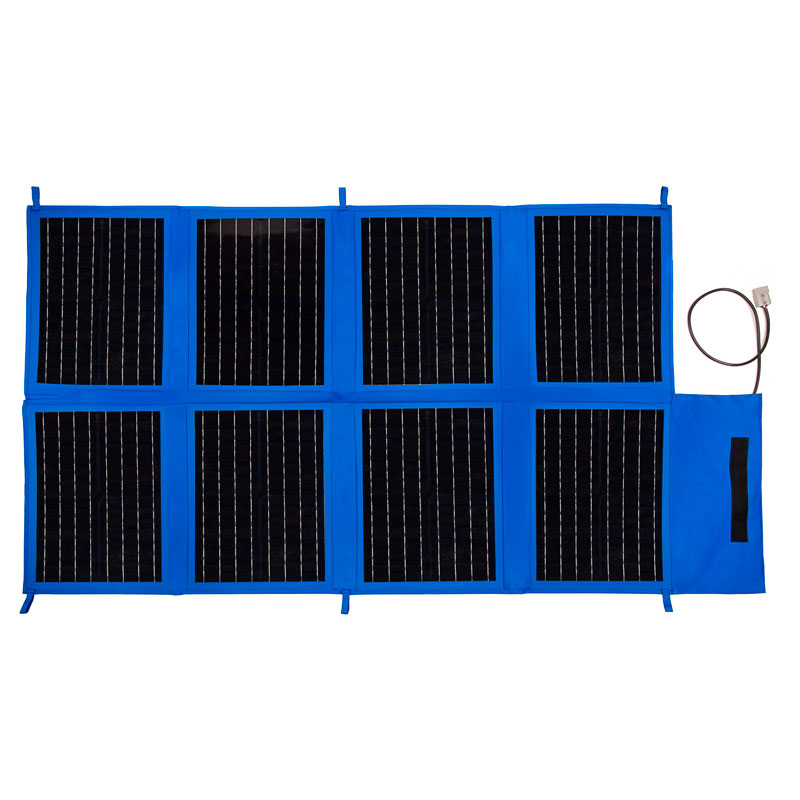

The light weight compact foldable solar blanket is a convenient portable solar electric generator to supply energy for your charging needs. The blanket utilises quality high efficiency cells and quality fabrics. The versatile weatherproof design provides multiple mounting and connection options.

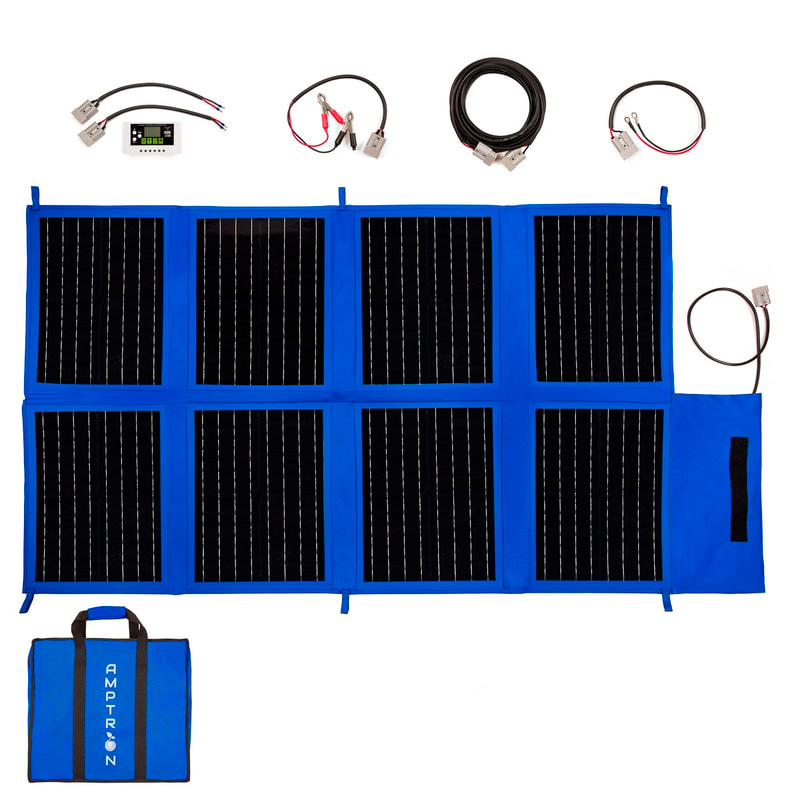

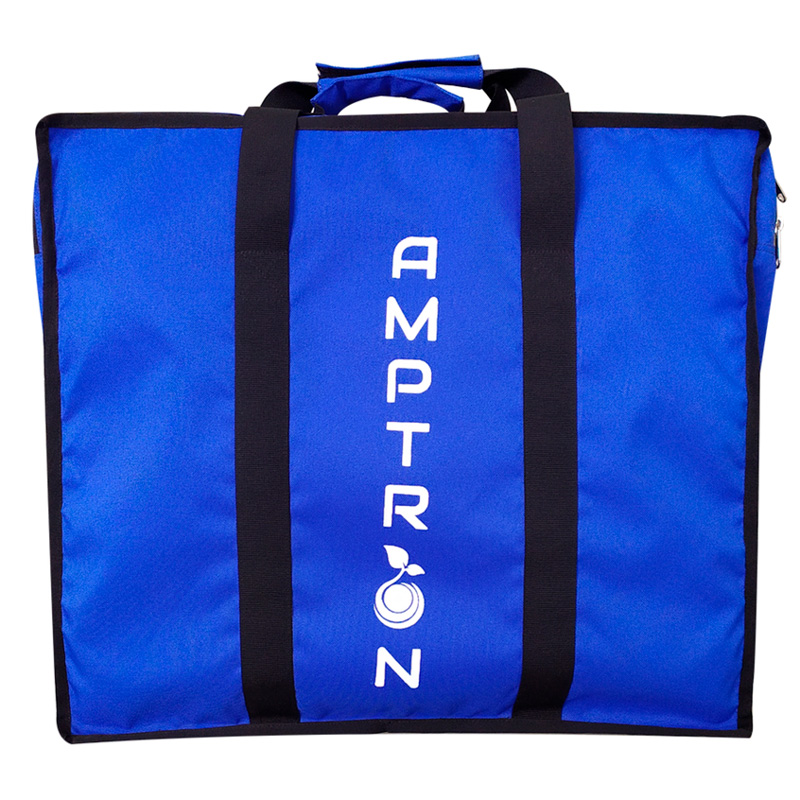

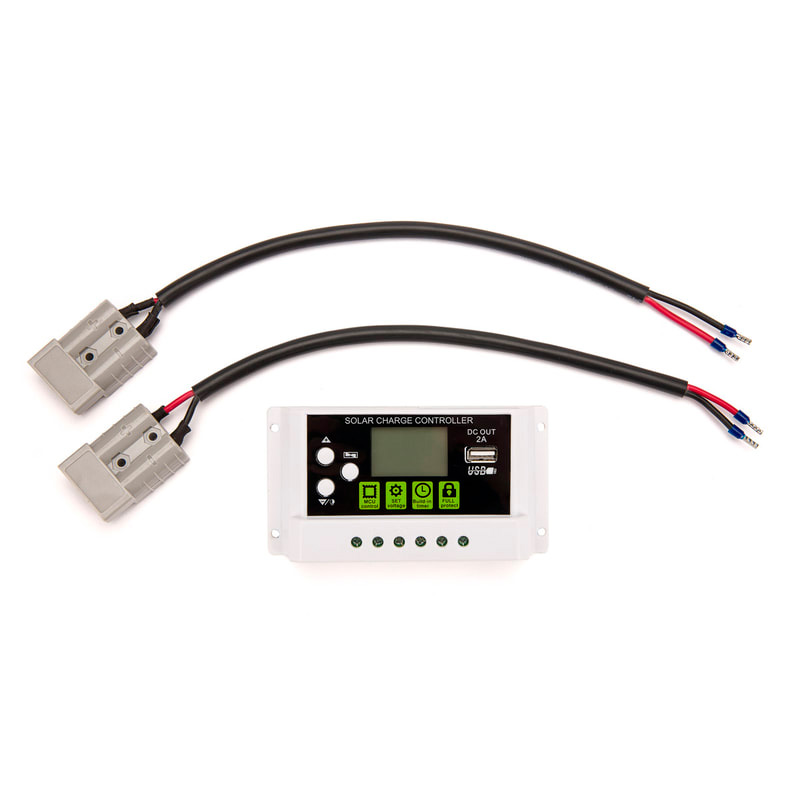

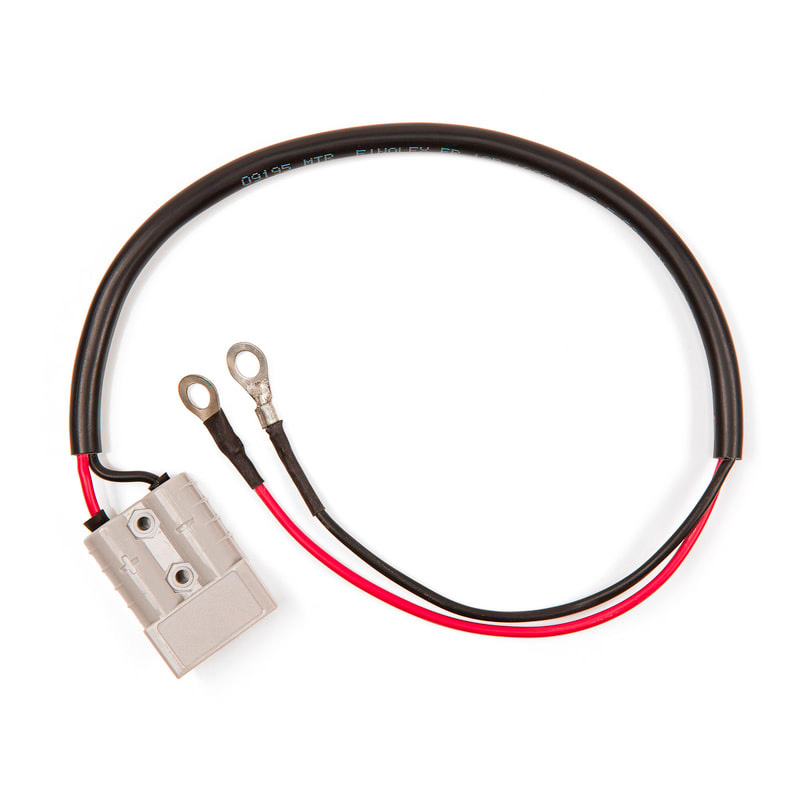

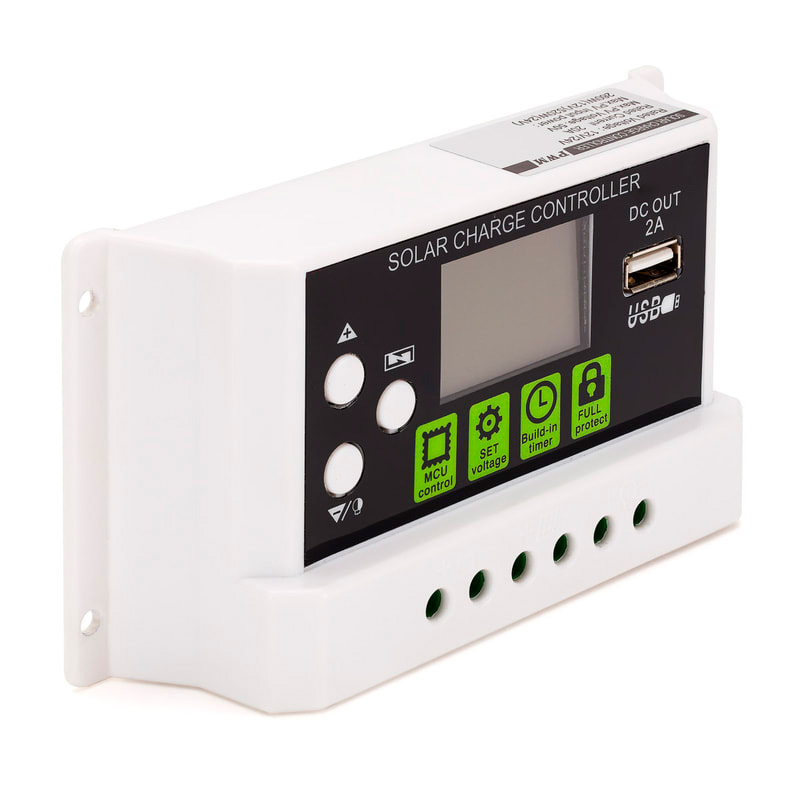

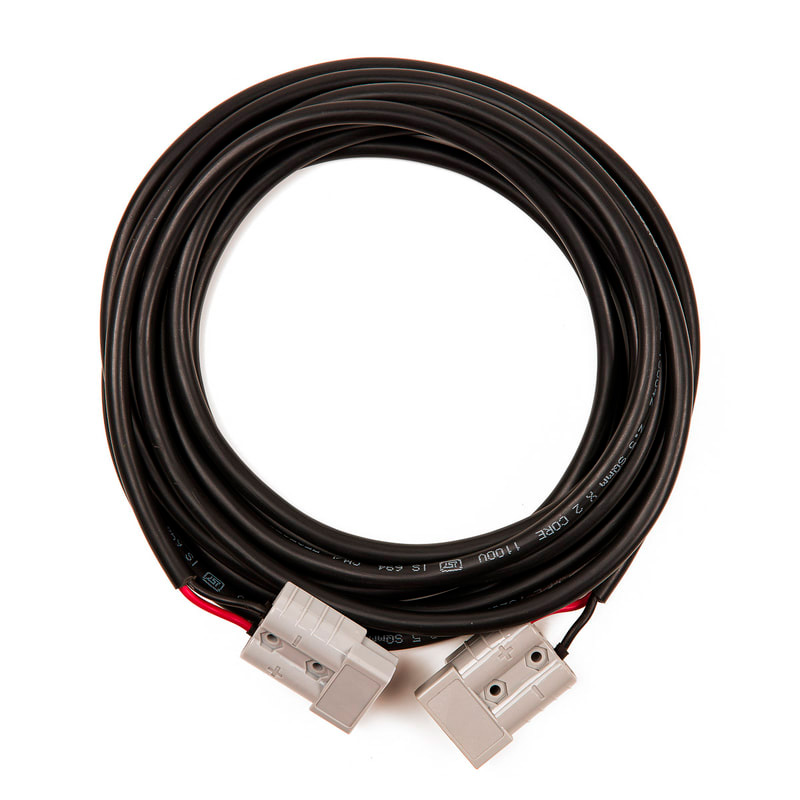

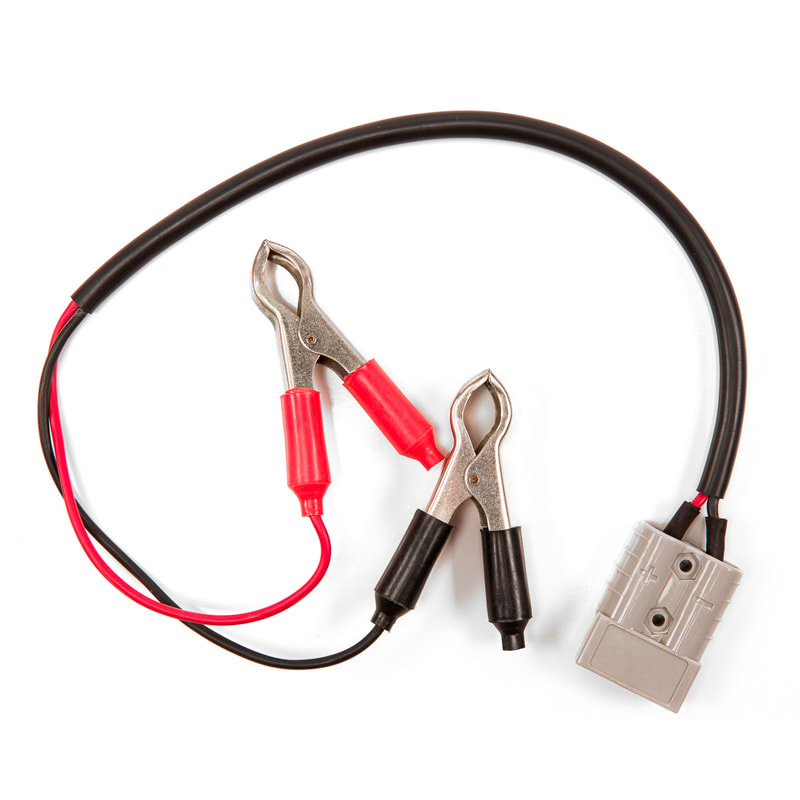

- Kit includes 30Amp PWM solar controller – 5m Extension Cable – 0.6m long Cable with Anderson connectors and Alligator Clips – Foam padded heavy duty carry bag
- Aluminium fold-out stand.
Item
|
Specification
|
Description/Remark
|
Model
|
AT-SOLBLANK-12-200AV02 + AT-SOLBLANKFR-200WV02
|
200W 12V Mono-Crystalline Solar Blanket Kit + Aluminium Stand
|
Maximum power rating
|
Pmax 200 Watts (25w x 8)
|
|
Solar Blanket dimensions
|
L-1855mm x W-1000mm x H-85mm
|
|
Tolerance on power output
|
+/- 6.0%
|
|
Current at max power
|
Imax 11.0 Amps
|
|
Voltage at max power
|
Vmax 18.17 Volts
|
|
Short circuit current
|
Isc 11.68 Amps
|
|
Open circuit voltage
|
Voc 21.44 Volts
|
|
No of cells
|
32 x 8
|
|
Temperature Coefficients
|
Isc +0.047%/0C, Voc -0.323%/0C, FF -0.117%/0C
|
|
STC Intensity 1000W/M2
|
Module Temperature 250C
|
Spectrum AM=1.5
|
Weight
|
7.0kg
|

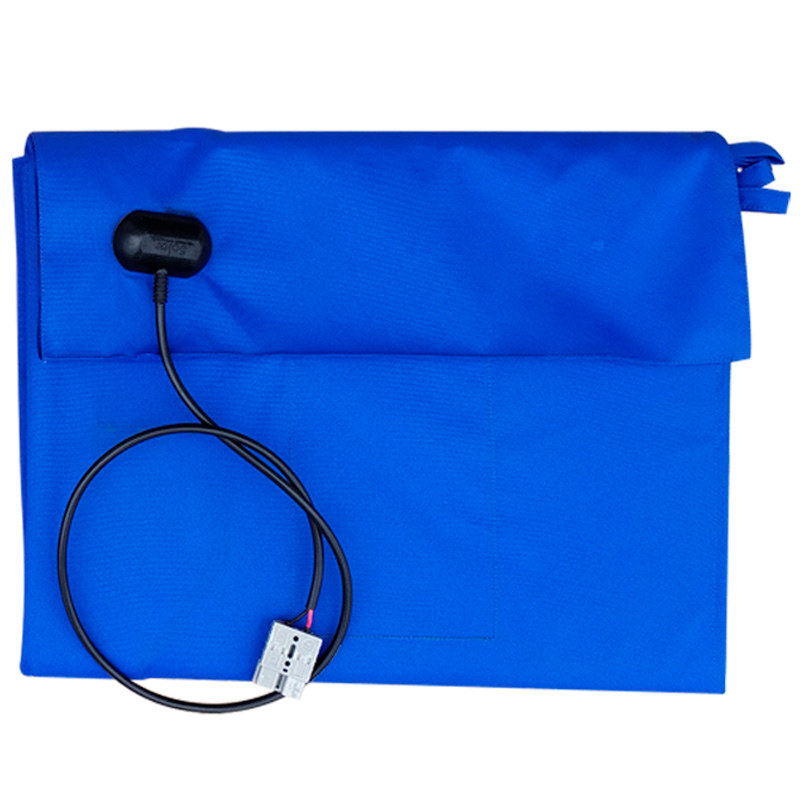

The lightweight compact foldable solar blanket is a convenient portable solar electric generator to supply energy for your charging needs. The blanket utilises quality high-efficiency cells and quality fabrics. The versatile weatherproof design provides multiple mounting and connection options, including an integrated magnetic back.
- Compact size and lightweight.
- High-efficiency Monocrystalline Cells with outstanding electrical performance in higher temperatures and low irradiation.
- Splashproof polyester fabric with no exposed sections.
- Long life with fabric-fabric stitching.
- Anderson connectors for easy interchange connection.
- Multiple Mounting Options
- Easy to Hold/Suspend loops.
Please click and read Solar blanket warranty policy
You can download 200W Solar Blanket_AT-SOLBLANK-18-200-AV02 user manual
